Astrotek USB-C Dock 12-in-1 Multiport Hub

Astrotek USB-C Dock 12-in-1 Multiport Docking Station

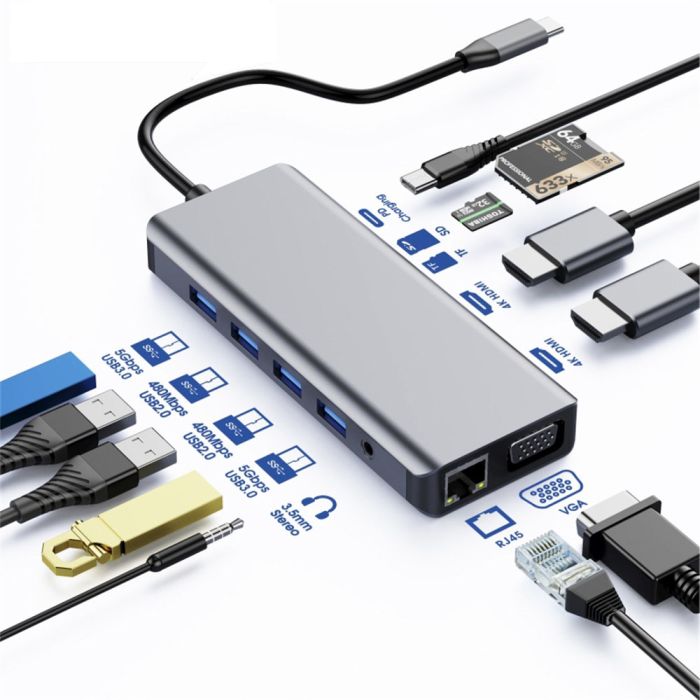

The Astrotek USB-C Dock 12-in-1 Multiport Docking Station is designed to enhance your work station with a variety of ports and features. The docking station includes 2xHDMI 4K, 1xVGA, 1xGLAN, 3xUSB3.0, 1xUSB2.0, TF/SD Card Reader, 3.5mm Audio and USB-C PD with a power delivery of ~100W.

It's a 12 in 1 Docking Station designed to support Dual Monitor and Triple Display USB C Adapter, enabling you to connect to 2xHDMI 4K, VGA, Ethernet, 4xUSB Ports, SD/TF Card Reader. It's suitable for both MacBook and Window systems.

Please note that the host USB-C port on the device must comply with the USB 3.1 specification or the USB-C port must be Thunderbolt 3. In order to use the HDMI output port, the host USB-C port from your device must support DisplayPort Alt Mode. The 3.5mm Audio needs to be used with HDMI or VGA. Some computer systems may require manual installation of the network card driver to connect to the Internet. When the VGA Port is connected, each monitor will be limited to a maximum resolution of 1920 x 1080@60Hz.

User Interface

• Input USB-C x 1
• Output HDMI 4K x 2
• VGA 1080P x 1
• USB 3.0 Type A x 4
• SD CARD x 1
• TF CARD x 1
• Ethernet 1000Mhz x 1
• 3.5mm Audio x 1
• USB C Power delivery 87W x 1

Resolution

• Single Monitor: 1*4K@30Hz(3840x2160) (HDMI)
• Single Monitor: 1*1080P@60Hz(1920x1080) (VGA)
• Dual Monitors: 2*1080P@60Hz (HDMI + HDMI)/ (HDMI + VGA)
• Triple Monitors: 2*1080P@60Hz + 1*800x400@60Hz (HDMI + HDMI + VGA)

Physical Characteristics

• Colour: Space Gray
• Length: 15cm

System Requirement

USB-C Ports with DP alt Mode

Product Name: Astrotek USB-C Dock 12-in-1 Multiport Hub
