Shuttle PVG01 - VGA Port Extension

PVG01 - DS81, DH110, DS87, DH170, XH81V

VGA port expansion kit for Shuttle Slim-PCs

The PVG01 adapter equips compatible Shuttle Slim PCs with an analog VGA output. For DS81 this also means only one serial interface (COM 1) can be used afterwards.

Note: Slim PCs with H81 chipset support up to two displays at the same time so that only two out of the available video outputs can be used.

Scope of delivery:

• Adapter PVG01
• Installation guide
• Two screws

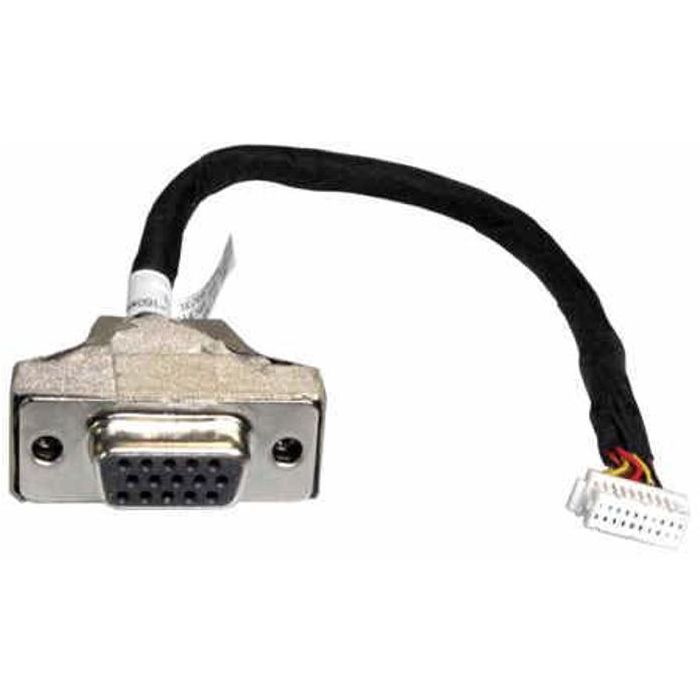

INTERNAL ADAPTER CABLE

Cable length: 160 mm

Back panel connector: 15-pin Mini D-Sub female socket (DE15)

Internal connector: Subminiature 2x10-pin, 1 mm Pitch Size, Female

Compatibility

Compatible to Shuttle Slim PC DS81, DS87, DH170, XH81, XH81V
